Home Fans S-Cube Range

Fans S-Cube Range



These fans are designed for direct or ducted ventilation in any residential, commercial and industrial buildings application. Designed for easy installation, their main characteristics are high efficiency and low noise level, thanks to the backward curved impeller and to the acoustic construction with double skin and acoustically lined panels. Suitable for conveying clean or slightly dusty air with temperature range from -15°C to +50°C in continuous service.

Version for industrial kitchens (temprature up to 180°C continuous)

For accoustic information and installation examples, download out product information brochure

Specifications & Options

How to add to your estimate:

  1. Select the model you wish to order from the table
  2. Click the 'Add To Basket' button
  3. To edit quantities click the 'View Order' button at the top of the page

  S-Cube 25
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC2503 254 M 4 0.09 1.00 55/F 56 SELECTED
1SC2501 254 T 4 0.09 0.60 55/F 56 SELECTED

  S-Cube 31
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC3103 314 M 4 0.12 1.30 55/F 63 SELECTED
1SC3101 314 T 4 0.12 0.70 55/F 63 SELECTED

  S-Cube 35
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC3503 354 M 4 0.25 2.20 55/F 71 SELECTED
1SC3501 354 T 4 0.25 0.80 55/F 71 SELECTED

  S-Cube 40
Code Model U P PM (kW) In (A) IP/CL Mot. (Gr) Order
1SC4003 404 M 4 0.55 4.30 55/F 80 SELECTED
1SC4001 404 T 4 0.55 1.60 55/F 80 SELECTED

  S-Cube 45
Code Model U P PM (kW) In (A) IP/CL Mot. (Gr) Order
1SC4505 454 M 4 0.75 5.50 55/F 80 SELECTED
1SC4501 454 T 4 0.75 2.20 55/F 80 SELECTED
1SC4503 456 T 6 0.37 1.20 55/F 80 SELECTED

  S-Cube 50
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC5001 504 T 4 1.10 2.50 55/F 90S SELECTED
1SC5003 506 T 6 0.37 1.20 55/F 80 SELECTED

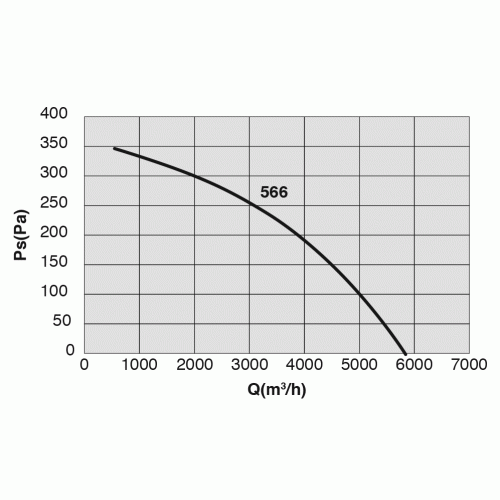

  S-Cube 56
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC5604 566 T 6 0.55 1.80 55/F 80 SELECTED

  S-Cube 63
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC6301 636 T 6 1.10 2.74 55/F 90L SELECTED

  S-Cube 71
Code Model U P PM (KW) In (A) IP/CL Mot. (Gr) Order
1SC7001 716 T 6 2.20 5.45 55/F 112 SELECTED

S-Cube A B C D d d1 E F G H I Kg
250 500 500 500 260 180 147 55 40 468 530 506 30
310 500 500 500 314 220 314 55 40 468 530 506 32
350 640 640 640 384 270 354 55 40 605 667 643 48
400 640 640 640 427 296 397 55 40 605 667 643 52
450 750 750 750 468 296 450 55 30 698 698 756 82
500 750 750 750 525 327 500 55 30 698 698 756 90
560 750 750 750 580 370 560 55 30 698 698 756 135
630 1000 1000 1000 650 430 630 75 50 948 948 1006 146
710 1000 1000 1000 730 476 710 75 50 948 948 1006 150


CONSTRUCTION

  • Frame in extruded aluminium profiles and removable double skin panels in galvanized steel sheet; all this brings to an excellent aesthetic impact.
  • Acoustic lining of the panels in self-extinguishing techno-polymer.
  • Backward curved impeller directly coupled to the motor.
  • B3 Motor fitted using suitable reinforced support seat.
  • Support brackets with holes suitable for lifting and easy installation.
  • Motor equipment:

- Asynchronous three-phase motor or singlephase motor manufactured according to international standards IEC 60034, IEC 60072, EEMC 2014/30/UE, LVD 2014/35/UE, CE marked, IP 55, class F.

- All suitable to S1 service (continuous working at constant load).

Accessories

  • Weatherproof cover.
  • Rainproof discharge outlet with guard.
  • Anti-vibration supports.
  • Floor support feet.
  • Square / Round outlet connector.


Air performances measured according to EN ISO 5801 / AMCA 210 standard with air density 1.2 kg/m³ specific weight. Compliant with ErP 2009/125/EC Directive and EU Regulation 1253/2014. Measurement category: C. Efficiency category: Static. Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz +/- 10%. In compliance with EU Regulation 1253/2014, the single flow Ventilation Units must be connected to a VSD (Variable Speed Drive) when put into service.

Lp: Sound pressure level measured in free field conditions, propagation spherical, measurement category C in accordance with EN ISO 13349, at the point of maximum efficiency, at a distance of 3 meters (for comparative purposes only).

Lw: Sound power level obtained in accordance with EN ISO 3746. Tolerance +/- 3 dB(A).
