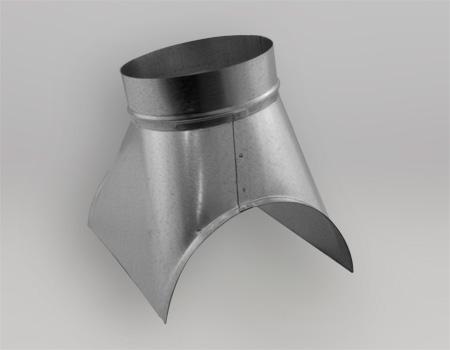

Conical Saddles Code: CFBS


Flatback
Specifications & Options

How to add to your estimate:

  1. Select the model you wish to order from the table
  2. Click the 'Add To Basket' button
  3. To edit quantities click the 'View Order' button at the top of the page

  Diameter D3
Diameter 'D1' 100 125 150 160 180 200
100 SELECTED
125 SELECTED SELECTED
150 SELECTED SELECTED SELECTED
160 SELECTED SELECTED SELECTED SELECTED
180 SELECTED SELECTED SELECTED SELECTED SELECTED
200 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
224 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
250 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
280 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
300 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
315 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
355 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
400 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
450 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
500 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
560 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
600 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
  Diameter D3
Diameter 'D1' 224 250 280 300 315 355 400 450 500 560 600
100
125
150
160
180
200
224 SELECTED
250 SELECTED SELECTED
280 SELECTED SELECTED SELECTED
300 SELECTED SELECTED SELECTED SELECTED
315 SELECTED SELECTED SELECTED SELECTED SELECTED
355 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
400 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
450 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
500 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
560 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED
600 SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED SELECTED

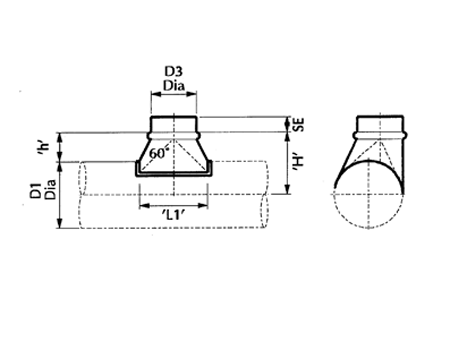

Dimension 'L'
  Diameter D3
Dimension 'h' 75 75 75 75 75 75 110 110 110 110 125 125 125 160 160 160 210
Dimension 'L1' 186 211 236 246 266 286 352 378 408 428 459 499 544 634 684 744 842
